01 / CELL FAMILY / PRODUCT ATLAS

NCM Cylindrical

18650 and 21700 ternary cylindrical cells for flight, robotics and mobile power.

09 REFERENCESHIGH ENERGY + POWER

TECHNICAL SELECTION / 01

Product
Atlas.

Published values support early selection. Confirm current datasheets and commercial requirements through a direct technical inquiry.

REF / 50ENCM Cylindrical

INR 21700/50E

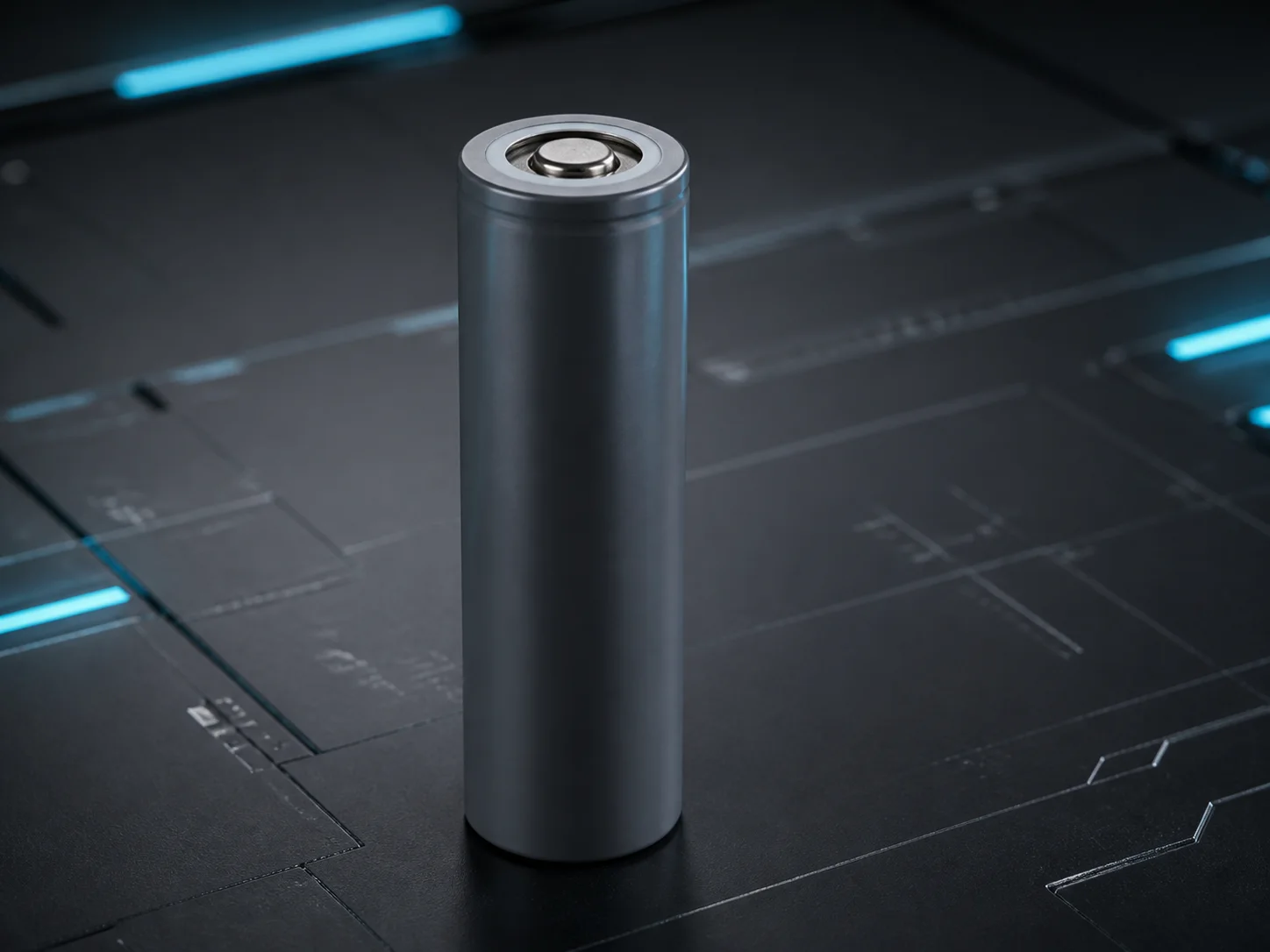

21700 50E

UAV / AGV / ROBOTICS

01: 5,000 mAh
02: 3.65 V
03: 15 A max discharge
04: TÜV · CB · RoHS · UL · UN38.3 · CE
C: Charge rate1C continuous
A+: Max charge current5 A
D: Discharge rate3C continuous
A−: Max discharge current15 A

Published selection reference — confirm the current datasheet before pack design.

Technical inquiry↗

REF / 50PLNCM Cylindrical

INR 21700/50PL

21700 50PL

UAV / POWER TOOLS

01: 5,000 mAh
02: 3.60 V
03: High-power profile
C: Charge rate2C continuous
A+: Max charge current10 A
D: Discharge rate14C continuous
A−: Max discharge current70 A

Published selection reference — confirm the current datasheet before pack design.

Technical inquiry↗

REF / 40PLNCM Cylindrical

INR 21700/40PL

21700 40PL

UAV / E-MOBILITY

01: 4,000 mAh · 223 Wh/kg
02: 3.65 V
03: 100 A continuous · 500 cycles @ 50 A
C: Charge rate3C continuous
A+: Max charge current12 A
D: Discharge rate17.5C continuous
A−: Max discharge current70 A

Published selection reference — confirm the current datasheet before pack design.

Technical inquiry↗

REF / 58ENCM Cylindrical

INR 21700/58E

21700 58E

UAV / LONG ENDURANCE

01: 5,700 mAh · 290 Wh/kg
02: 3.60 V
03: >1,000 cycles · 3C discharge
C: Charge rateConfirm current datasheet
A+: Max charge currentConfirm current datasheet
D: Discharge rate3C continuous
A−: Max discharge current17.1 A

Published selection reference — confirm the current datasheet before pack design.

Technical inquiry↗

REF / 40PNCM Cylindrical

INR 21700/40P

21700 40P

ROBOTICS / TOOLS

01: 4,000 mAh
02: 3.60 V
03: ≤12 mΩ AC resistance
C: Charge rate1.5C continuous
A+: Max charge current6 A
D: Discharge rate12.5C continuous
A−: Max discharge current50 A

Published selection reference — confirm the current datasheet before pack design.

Technical inquiry↗

REF / 33VNCM Cylindrical

INR 18650/33V

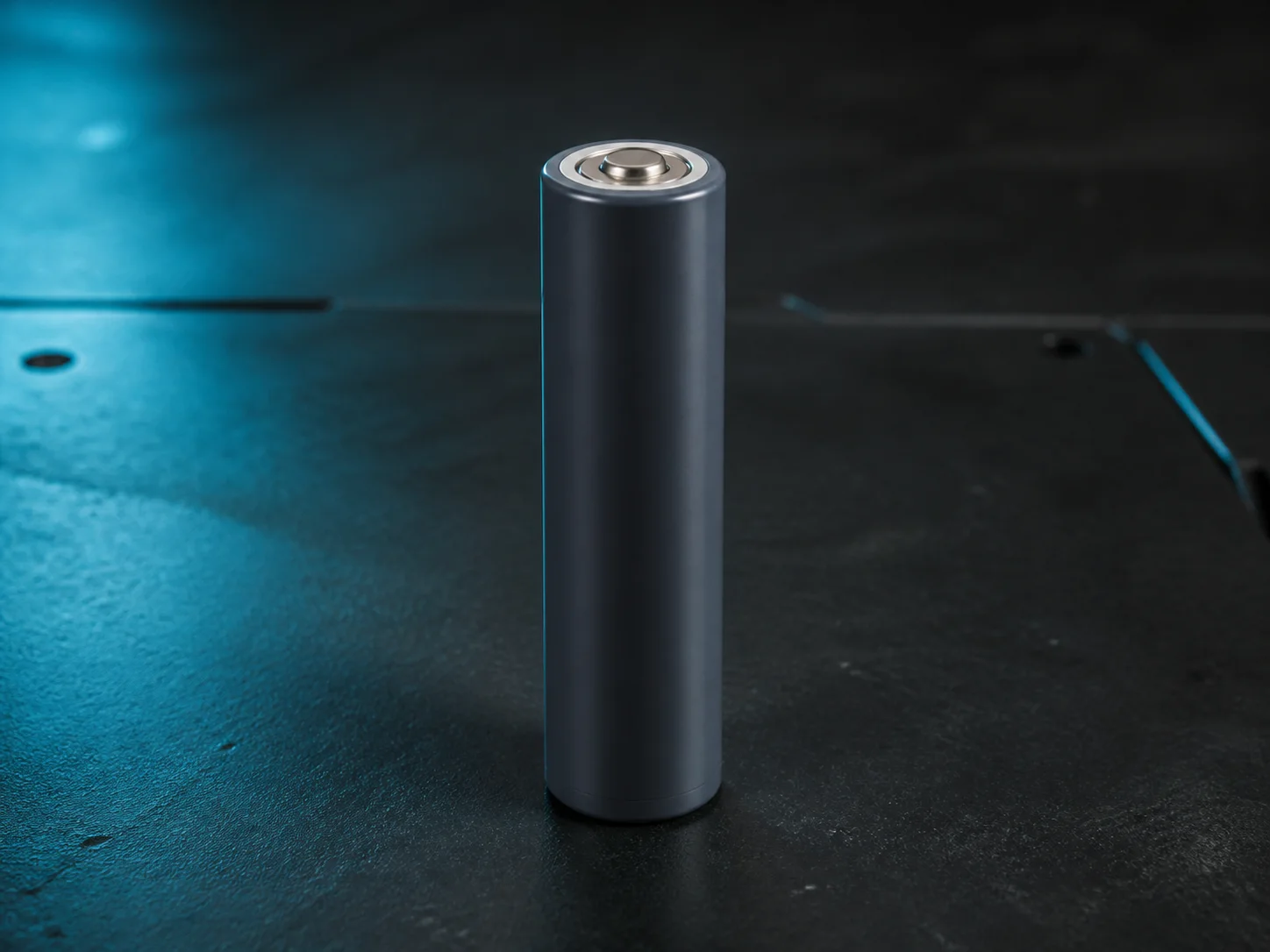

18650 33V

AGV / ROBOTICS

01: 3,200 mAh
02: 3.60 V
03: Compact energy cell
C: Charge rate1C continuous
A+: Max charge current3.2 A
D: Discharge rate3.1C continuous
A−: Max discharge current10 A

Published selection reference — confirm the current datasheet before pack design.

Technical inquiry↗

REF / 30PNCM Cylindrical

INR 18650/30P

18650 30P

TOOLS / ROBOTICS

01: 3,000 mAh
02: 3.60 V
03: Power-balanced cell
C: Charge rate1.33C continuous
A+: Max charge current4 A
D: Discharge rate10C continuous
A−: Max discharge current30 A

Published selection reference — confirm the current datasheet before pack design.

Technical inquiry↗

REF / 26VNCM Cylindrical

INR 18650/26V

18650 26V

PORTABLE POWER

01: 2,550 mAh
02: 3.60 V
03: Compact format
C: Charge rate0.98C continuous
A+: Max charge current2.5 A
D: Discharge rate2.94C continuous
A−: Max discharge current7.5 A

Published selection reference — confirm the current datasheet before pack design.

Technical inquiry↗

REF / 25PNCM Cylindrical

INR 18650/25P

18650 25P

TOOLS / MOBILE POWER

01: 2,500 mAh
02: 3.60 V
03: Power cell
C: Charge rate2.4C continuous
A+: Max charge current6 A
D: Discharge rate12C continuous
A−: Max discharge current30 A

Published selection reference — confirm the current datasheet before pack design.

Technical inquiry↗

NEXT / APPLICATION MATCHING

Need a cell for
flight duty?

Share your pack voltage, peak current, payload, runtime target and annual volume.

Discuss a programme↗
